• Glass hob
  • 2 burners
  • FD burner
FD2B
Let every family enjoy the fun of cooking
Buy Now
Product Details
Pressure equalizing ring technology, ensuring higher combustion efficiency and better stability FOTILE patented pressure equalizing ring technology relieves the gas impulse, equalizes the pressure of the entire mixing chamber, and mixes the gas and air thoroughly, making the flame more uniform and the combustion more stable.
One-piece cast iron burner, exquisite, elegant and simple The cast iron burner has the uniform material and sealed design, without leakage hazard. The size of the hob is more suitable for a small space kitchen, simple and comfortable.
Technical Parameters
  • Certification: /
  • Product Size (mm)(W×D): 730X410
  • Built-in Size (mm)(W×D): 660X360
  • Gas Type: LPG/NG
  • Gas Pressure (Pa)/Voltage: 2800/2000/1000
  • Heating Load: L:4.5 R:4.5
  • Cooking Area Silk Screen Diameter(mm): /
  • Knob: metal pen knob
  • Grate: flat steel
  • Net Weight (kg): 12
  • Gross Weight (kg): 13.6
  • Carton Size (mm): 775X465X195

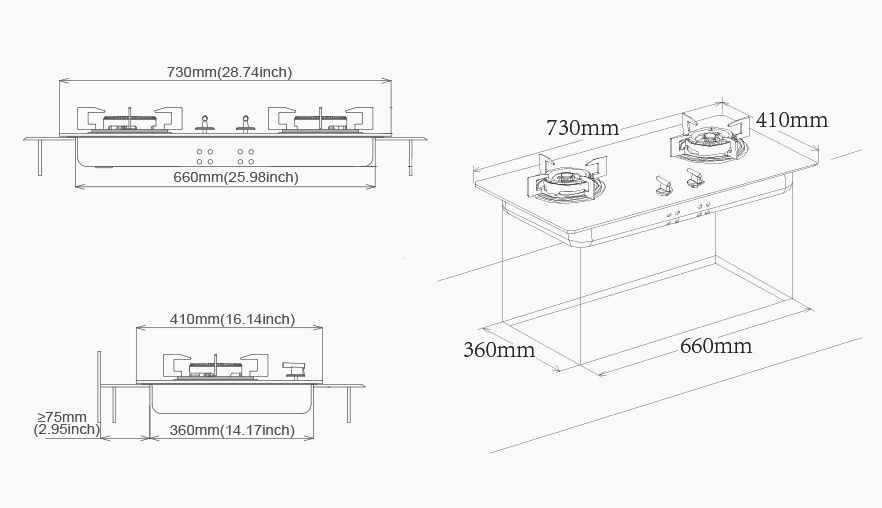

Installation Diagram
Wind tunnel installation ceiling installation diagram (unit: mm)
