• Automatic Turbo System
  • Butterfly Wing Ring Suction
  • European Style Range Hood
Setting a new standard with ring suction that breaks away from tradition
Buy Now
Product Details
Wing-liked surround suction technology FOTILE W implements the innovative innovative “smart wing-like surround suction plate” that offers super strong 3D suction and extraction effect by wider fume control range and accelerated fume inlet, achieving no escape of fumes.
Auto Extraction Resistance Detection Poor fume extraction during peak cooking hours will lead to fume backflow. FOTILE W automatic cruise turbo function provides real-time detection. When the exhausting environment is not smooth, and the resistance becomes large, the automatic turbo system is on for rapid pressurization with ultra-powerful smoke exhaustion. Equipped with the innovative Bionic Wings Impeller design, it ensures quick and smooth exhaustion even in peak hours.
Easy and effortless cleaning FOTILE W detachable butterfly wing + zinc alloy hook, easy to disassemble and scrub; equipped with zinc alloy hook, corrosion-resistant and more durable.
Smart Life, Innovative Technology Delay Off Function, keeping the hood on for a while longer
Technical Parameters
  • Certification: CB,SAA,ETL
  • Product Size (mm)(W×D×H): 900X520X(660-960)
  • Voltage: 220-240V 50/60Hz;120V 60Hz
  • Noise Level (dB): ≤49
  • Illumination Power (W*1): 2(LED)
  • Air Flow (m³/h): 1450
  • Motor Power (W): 210
  • Filter: Corrugated Filter
  • Gas Sensor: N
  • Heat Sensor: N
  • Wind Curtain: N
  • Auto Turbo System: Y
  • Intelligent Air Management: N
  • Smoke Sound Detection: N
  • Anion Sterilization: N
  • Central Energy Cursor: Y
  • Net Weight (kg): 29.7
  • Gross Weight (kg): 36.6
  • Packing-Box Size (mm): 965X685X575

  • Volume (m³): 0.38

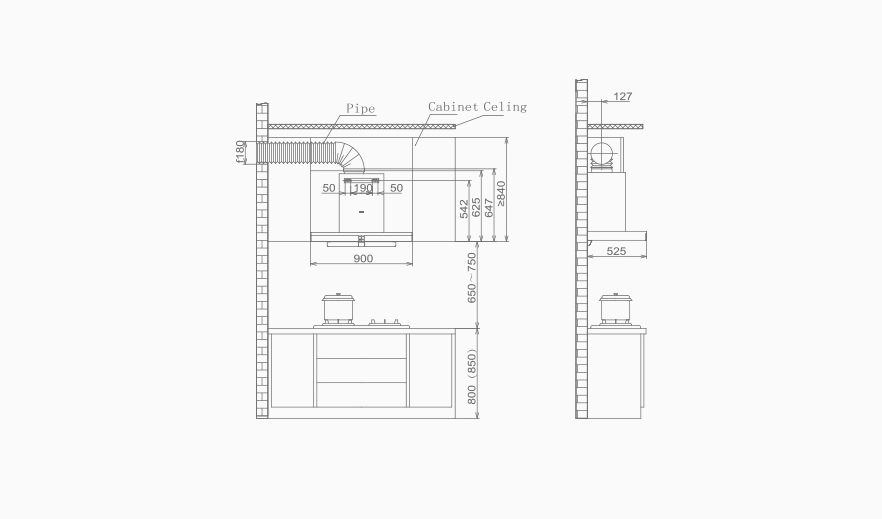

Installation Diagram
Wind tunnel installation ceiling installation diagram (unit: mm)
